Motorised Ball Valve (Electric)

Can you explain how to wire this valve?

The DEELAT On/Off Motorized Ball Valves are one of the easiest valves to wire. The actuator will come with 3 wires; Blue, Brown, and Black. Blue is negative, Brown is positive, and Black controls the opening and closing of the valve. The blue and brown wire must be receiving power at all times. When the black wire receives positive power it will open the valve and when power is removed it closes the valve. These valves are usually controlled by a switch or controller meaning the black wire must be connected to the switch or controller because its the wire sending a signal to the actuator to open and close.

I'm assuming that 3-point wiring means it needs power to open or close. If power is cut, does the valve stay in the current position?

You are correct, the motorized ball valve with 3-point wiring will need to be powered to open and close. If power is cut the valve will in fact stay in its current position just like you said.

Can you provide a wire diagram for this valve?

The wiring diagram for D1156043 is actually available in the downloadable PDF spec sheet on this page above. Please download the spec sheet to find the diagram.

Are viton seals an option for the 1156043?

The viton seals can certainly be applied on any of our motorized ball valves. D1165060 and other viton o rings can be found by searching for our o ring category in the search bar.

I NEED 2000 PSI RATED

DEELAT does not offer any motorized ball valve that can withstand that amount of pressure.

Is this item feature a manual override?

Many of DEELAT's motorized ball valves have manual override switches; however, this is not one of them. If you have a specific application that requires a motorized ball valve with these specs and a manual override switch, call our sales team.

Does the motorized ball valve handle a steam operation at 11 psi?

The motorized ball valve will not handle a steam operation. This is an electric ball valve that can be used in a wide range of electric setups.

Do you know what the maximum pressure is that can be applied to these motorized valves?

This stainless steel valve body is PN25 pressure rated meaning it will withstand up to 363 PSI.

I like to use this valve in a natural gas line is this valve AGA approved?

We do not have a motorized ball valve that will be compatible with natural gas. The seals are not meant to handle gases and will leak.

What is the life expectancy for these actuators and valves?

The Motorized Ball Valves have a lifetime of 50,000 cycles at 100% open and closing.

What is the temperature rating?

The temperature rating for this motorized ball valve is 2°C to 95°C.

How long is the power cord?

Hello, Joe. It is not really a power core; it's 3 to 5 wires, depending on your wiring type.

are the gears in the actuator made of plastic or metal?

The gears inside of the actuator are made of glass fiber and a heavy duty plastic alloy.

Hello, Do you have the control panel that the valve is wired to? Is it included with the valve ?

We do not have control panels. The valve will be wired to the electrical system in the building where you are installing the valve. If you have any other questions or concerns please do not hesitate to contact us.

Do you sell the switches to operate the motorized ball valves?

This product contains a switch to operate already, it doesn't require an extra switch.

I need the outside dimensions for the 3/4 ball valve please. Thanks

The outside dimensions of this specific ball valve are 2.5 in X 2.5 in X 1.5.

Is this valve approved for drinking water?

All of our stainless steel valves are approved for potable water. If the valve is going to be in contact with any potable water, a stainless steel valve must be used.

How much does this valve draw from the battery? I see that it takes 16s to operate, but it how much current (i.e. amps) does it draw over that time? To put it another way, how many Ah (amp-hours) are needed to open or close the value? Thanks.

The valve does not draw any power from a battery, this actuator must be hard wired to a 12V DC power source. The actuator has an open close rate of 2 seconds, not 16. The reason for the rate of 2 seconds is because it's not a steady running time due to the DC motor inside. When opening the valve using the opening control wire, there is a current of about 55mA, and when the valve is entirely opened, there remains a 10mA current flow. When closing the valve, the current is at about 55MA as well, but when entirely closed, there remains a current at the range 0 to 10mA.

Do you make anything in stainless that operates at 12 volt dc and is class 1 div 2 rated (hazardous location)

DEELAT has motorized ball valves in stainless steel, however, they are not recommended to use in a Class 1 Div 2 area. Even though, they can handle oil, the valve itself could possibly leak. Our manufacturer would need more much more details of the environment the motorized ball valve will be in to make sure its suitable.

I am trying to connect an automatic shutoff valve due to loss of power in basement. This is needed due to having pumps for bathroom and laundry area and don't want water available if pumps don't have power. Are these valves good for that application or would something else fit better?

Our motorized ball valves are used for this application all the time. The simplest approach is to use any motorized ball valve with an on/off wiring and set the default valve position to closed before installation. When the power is shut off, the motorized ball valve will automatically default to the closed position. Also, please be aware that the actuator has an IP54 rating, so be careful about getting the actuator wet, as it is not fully waterproof.

What type of electrical connection supplied with this unit, terminal or pigtail?

We received the units with pigtails and we hard wired them to a Johnson temperature controller. We put the Johnson controllers inside a NEMA enclosure.

Is this product IP65 rated? Please confirm.

All DEELAT actuators with manual override switches, including this product, are IP65 rated.

Do you offer a fail safe option for this valve?

The valve has a failsafe feature. As soon as the actuator is opened or closed completely, power is cut automatically.

Where are your Motorized Ball Valves actually made?

Our motorized ball valves are made in Hong Kong.

Is this valve rated for steam?

Our Motorized Ball Valves are IP55 rated.

Do you have an air-operated open/close ball valve with adjustable time to open or close?

Unfortunately we do not.

Can you supply these valves as a V port valve?

The valves do not come as a V port from the factory but if requested can be made to order. We can offer a V port valve in 15, 75, or 90 degrees. If you wish to place an order for a V port valve please contact our sales staff for a quote.

Do these valves come as a T or L port?

We can offer these motorized valves with either a T or L port valve. Our recommendation is to please contact our customer support team to place the order for the specific valve you need. This way we can guarantee you are getting exactly what you need to complete your project

How would you process a warranty claim for "Motorized Electric Ball Valve - 2-Way AC - 3/4", 3.5N.m, Stainless Steel, 230 V - 3-Point" if I needed that?

You can call us at 1-888-785-2677 to initiate a product or exchange, and you can also do it through your account interface on the website.

Are these valves rated for natural gas?

This stainless steel ball valve cannot be used with natural gas. These stainless steel ball valves are made to have some sort of liquid run through them such as water or coolant. We can certainly work with you to source a valve that can handle natural gas.

What is the minimum operating temperature, are these actuators rated for -40°C operation?

The operating temperature of the actual actuator, which is the motor that turns the ball valve, is -5°C to 60°C. The stainless steel ball valve can withstand -40°C temperatures.

What is the flow rate through a 1" valve? Does it restrict flow more than a full port ball valve?

The flow rate is 16.1 KVs. And it is reduce bore , so flow rate will be smaller than full port type.

Can this be used for diesel fuel? Does it shut off after actuating from closed to open, even when 12 volts is still there?

This motorized ball valve cannot be used with diesel fuel. The actuator does shut off after actuating and will remain open until switched/powered to close.

is this valve designed for continues duty cycles

Yes. Deelat motorized ball valves have a lifespan or cycle life of at least 50,000 cycles.

can this be used for residential natural gas?

Unfortunately our motorized ball valves cannot be used for natural gas. The seals are not made to withhold gas within the valve so there will be gas leaks which is very dangerous.

if you apply power the valve opens and if you stop power to unit does it shut off?

The motorized ball valve default position is set to open or close before installation. If the ball valve default position is set to close, then when the power is lost to the motorized ball valve, it will close.

Are there any control systems, that use water sensors to isolate the water system in the event of a leak, which work with Deelat electrically actuated ball valves? In the event of a power failure do the valves stay in their last position or do they fail-safe open or close?

In the event of power failure, the valve will go to the default position. The default position is set by the installer before installation and can be changed any time to open or close.

Can this valve be used for potable water?

DEELAT brass motorized ball valves are lead free, but cannot be used for potable water. However, all of our stainless steel valves can be used for potable water applications.

Hi, What material are the seals made of? We would potentially use your motorized ball valves in an electrical discharge machining (EDM) application and oil would be transferred through the valve. Viton or Buna-N seals would work best. Also, do you offer any samples? Thank you.

The seals that are inside the valve body of our Motorized ball valves are made out of EPDM (Ethylene Propylene Diene Monomers) which is a high density synthetic rubber that is extremely versatile with an ability to withstand 0 - 95 degrees Celsius. Please contact our customer support team at 1-877-956-5685 regarding samples by phone.

What water pressure can the valves handle?

The water pressure this valve body can withstand is PN25-PN40 (Min to Max).

What is the diameter of the valve port? Is it a full port?

This valve is full port, so it will have a diameter is 1/2".

What is required for wiring these valves to a Johnson Controls A421 digital thermostat for flow control of glycol to a brewing fermenter ?

Johnson Controls A421 series has 10 sub models. The motorized ball valves with the most advanced wiring configuration are our proportional wiring motrized ball valves. Can you please provide your exact model #? You can either call us or email us at your earliest convenience.

Is this safe to use (sanitary) in a homebrewing environment for moving hot wort?

DEELAT motorized ball valves have been used for a few different brewing applications. The most common are for chilling fermenters with a glycol mixture. Our motorized ball valves can be used to transfer hot wort from the mash tun to the boil kettle which usually are temps below 194°F but are not recommended to be used the wort that is boiling. The max temperature these valves can withstand are 194°F. If you run boiling wort through the valve it will quickly diminish the gasket and seals in the valve causing leaks.

can you fit a ball valve in 316 ss and to 1000 psi?

We do offer the valve body for this motorized ball valve in a 316SS version however it will not be able to withstand 1000 PSI. Max PSI it can withstand is 145 PSI. We do not offer any type of valve body that can hold 1000 PSI.

Can this valve mounted in any position or has to be upright only?

We use these in our craft brewery on glycol chiller lines. Some are mounted horizontal and some are mounted at a 30 degree angle. Originally had them mounted vertical but didn’t like our system configuration that way however, we saw no problems with any of the mount orientations.

will this valve work for steam at 13 psi?

You can use DEELAT valves with steam, however, we do not recommend to use them with steam. The temperature of steam reaches right above the recommended temperature range of the valve which is 35°F-194°F (2°C-90°C). The admissible pressure is 2.0MPa (290 psi) and the closing pressure is 1400KPa 203 PSI.

Are your Brass or Stainless Steel valves certified for use in Residential Drinking Water Systems?

Our brass motorized ball valves cannot be used for drinking or potable water. However, all of our stainless steel motorized ball valves are certified and are okay for use with drinking and/or potable water.

Can a stainless steel valve be threaded to a copper fitting without creating corrosion between the two metals?

Connecting copper and stainless steel in a plumbing setup is not recommended as corrosion will occur.

Can this valve be used for low pressure propane?

While our valves are ideal for a range of plumbing and vehicle heating and cooling applications, unfortunately we cannot recommend using one for low pressure propane because it would be too dangerous in the event of leakage.

What are the materials that are in contact with the fluid path? (Stainless steel, etc.)?

The materials in contact with the fluid path are stainless steel, PTFE and EPDM.

Do you offer 316L Stainless Steel and orings in Viton or Kalrez?

DEELAT carries SS304 stainless steel valves with double o-rings on both the ball and the stem. We do not have SS316L stainless steel valves or o-rings in Viton or Kalrez.

Is this item suitable for outside use?

We do not recommend using the valve outdoors. This motorized ball valve has a gap between the actuator and the base. Therefore, rain will seep in and cause problems.

Do you offer 316L Stainless Steel and orings in Viton or Kalrez?

We have many Viton o-rings for sale in the Plumbing section of our website. We have 304 Stainless Steel valves but not 316L Stainless Steel valves.

The heading shows 1/2", the description shows 3/4", which is it at what price. I would need a 3/4" ball valve. Confirm the price for a 3/4" please. Is it OK to wire this to a normal 110VAC wall switch ?

The valve is 3/4" size and the listed price is correct. You can wire the valve to a 110VAC wall switch.

Does the motor shut off when fully open and fully closed?

The valve's motor runs continuously to ensure the position of the valve, whether fully open or fully closed.

As this is AC power, is the valve open or closed before power is applied?

The valve arrives in the open position. If the power stops during usage, the valve remains in the same position. If the power to the control wire is cut, then the valve will close.

I am looking for a 3 way motorized water valve to switch between water source 1 or water source 2. If it has a shut off that is ok, Something that come with a switch and power source would be the best.

DEELAT three-way valves do not have shut off, but the two-way valves do. Also, the valves come wired so that they can be connected to whatever power source you are using for your application.

DEELAT ® Motorized Ball Valve (Electric) - 2-Way AC - 1/2", 3.5N.m, Stainless Steel, 110 V - On/Off - how long can the ball valve be left in the on position? What is the warranty? What are the temperature maximum exposure limits? Is the unit water proof ?

The ball valve will maintain its position until you change the wire connection, usually via a switch. The warranty is 180 days. The maximum ambient temperature is 140 degrees F (60 degrees C) and the maximum medium temperature is 248 degrees F (120 degrees C). The waterproof rating for the unit is IP 55.

Can this unit get wet while in use from splashing?

The valve has an IP54 waterproof rating, which means it is protected from water spray and offers limited protection from water ingress.

Can this be configured to normally open/ powered closed?

This valve is configured differently -- when the power is shut off, the valve stays in the position it is in.

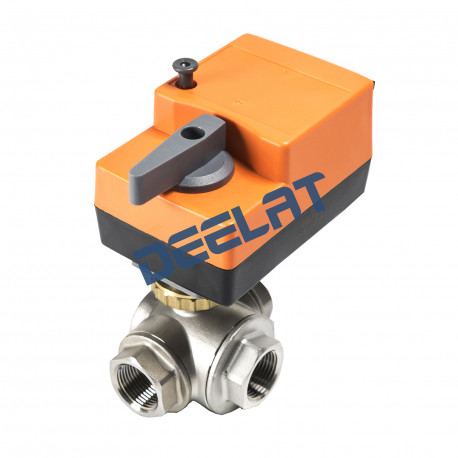

DEELAT ® Motorized Ball Valve (Electric) - 3-Way AC - 1/2", 3.5N.m, Stainless Steel, 110V - ON/OFF, WHAT IS THE THREAD SPECIFICATION?

Hi David, thanks for your question. The valve is available in either BSPP or NPT thread specifications. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Do you have this valve with a 1 or .5 second run time?

Sorry, we do not have a motorized ball valve with a 1 or .5 second run time. We do have a large variety of other run times, starting at 12 seconds and going upwards of 60 seconds.

Hi. For this Motorized Ball Valve (Electric) - 2-Way AC - 1/2", 3.5N.m, Stainless Steel, 24 V - On/Off is this a full-port valve?

Yes, this motorized electric ball valve is a full-port valve.

Do you supply an electric actuated ball valve that is "electric to open and spring to close"?

Yes, we do, but they are not shown on our web site. Please provide the specification to our customer service department in order to get a quote.

Are your valves NSF61 (drinking water) certified?

Yes, this motorized ball valve is CE certified.

My bathroom sink is far from the water heater and water is wasted waiting for the hot water to get to the faucet. How will DEELAT help save water?

The motorized ball valve cannot solve this problem, but installing a water heater closer to the sink would save water. Deelat's electric water heaters are energy efficient and would be a convenient choice.

How do I turn the electric motor powered shut off valves remotely? Do I need a relay type panel? Will that relay panel allow me to also shut the water off with a timer at night and also have two other on/off switches, one for each of my two tenants at the location?

This motorized ball valve does not have any form of remote control. It does have an on/off actuator, however.

Is this valve suitable for power on to open and power off to close in a 2 wire system?

Yes, this motorized ball valve is suitable for that function.

Can these valves be used for potable water?

This motorized ball valve cannot be used for potable water. However, a stainless steel motorized ball valve would work with potable water, although Deelat does not sell those.

Can this product fail open?

No, this motorized ball valve cannot fail open.

I am looking for a replacement motor for your valves, the metal body is still good but I burnt out the electrical. Can I just order an electrical/motor hardware?

Sorry, our factory cannot replace just the motor for this motorized ball valve. You will need to replace the entire apparatus.

What different color road studs do you sell? I'm interested in purchasing and I would like to get a couple of each to use as samples.

Hi Ranger. We have white, red, yellow, blue and green. There will be MOQ for the order of the road studs, so please call our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance.

Can you get this product in 12 volts, and if not is the power input in the center port open?

Do you have a 3/8-inch 24vac dual solenoid?
